# Building from source and run using Docker [Step By Step Process](#step-by-step-process) [Demo Video](#demo-video) [Troubleshoot](#troubleshoot) ### Step By Step Process The following steps need to be executed in order to start Guardian using docker: 1. [Clone the repo](#id-1.-clone-the-repo) 2. [Configure project level .env file](#id-2.-configure-project-level-.env-file) 3. [Update BC access variables](#id-3.-update-bc-access-variables) 4. [Setup IPFS](#id-4.-setup-ipfs) 5. [Setting up ChatGPT Key (if required)](#id-5.-setting-up-chat-gpt-api-key-to-enable-ai-search-and-guided-search) 6. [Build and launch with Docker](#id-6.-build-and-launch-with-docker) 7. [Browse to http://localhost:3000](#id-7.-browse-the-local-browser) 8. [For increased security remove credentials from `.env` file](#id-8.-increase-security) ## 1. Clone the repo ```shell git clone https://github.com/hashgraph/guardian.git ``` ## 2. Configure project level .env file. The main configuration file that needs to be provided to the Guardian system is the `.env` file. Note that these files contain sensitive configuration such as keys and access credentials which are only used at the initial start of Guardian. For increased security it is recommended to disable inbound network access until after the first run of Guardian, when the credentials configuration has been removed from `.env` file (see p8 below). For this example purpose let's name the Guardian platform as "develop" ```shell GUARDIAN_ENV="develop" ``` {% hint style="info" %} **Note** Every single service is provided in its folder with a `.env.template` file, this set of files are only needed for the case of Manual installation. {% endhint %} ## 3. Update BC access variables Update the following files with your Hedera Mainnet or Testnet account info (see prerequisites) as indicated. Please check complete steps to generate Operator\_ID and Operator\_Key by looking at the link: [How to Create Operator\_ID and Operator\_Key](https://docs.hedera.com/guardian/getting-started/getting-started/how-to-create-operator-id-and-operator-key). The Operator\_ID and Operator\_Key and HEDERA\_NET are all that Guardian needs to access the Hedera Blockchain assuming a role on it. This parameters needs to be configured in a file at the path `./configs`, the file should use the following naming convention: `./configs/.env.\.guardian.system` There will be other steps in the Demo Usage Guide that will be required for the generation of Operator\_ID and Operator\_Key. It is important to mention that the Operator\_ID and Operator\_Key in the `./configs/.env..guardian.system` will be used to generate demo accounts. The parameter `HEDERA_NET` may assume the following values: `mainnet`, `testnet`, `previewnet`, `localnode`. choose the right value depending on your target Hedera network on which the `OPERATOR_ID` has been defined. As examples: following the previous example, the file to configure should be named: `./configs/.env.develop.guardian.system`, this file is already provided in the folder as example, only update the variables OPERATOR\_ID, OPERATOR\_KEY and HEDERA\_NET. ```plaintext OPERATOR_ID="..." OPERATOR_KEY="..." HEDERA_NET="..." ``` Starting from Multi-environment release (2.13.0) it has been introduced a new parameter `PREUSED_HEDERA_NET`. Multienvironemnt is a breaking change and the configuration of this parameter intend to smooth the upgrading. `PREUSED_HEDERA_NET` configuration depends on the installation context. * If the installation is a completely new one just remove the parameter and feel free to jump to the next paragraph. * if you are upgrading from a release after the Multi-environment (>= to 2.13.0) do not change the state of this parameter (so if you removed the parameter in some previous installation do not introduce it). * if the installation is an upgrading from a release previous of the Multi-environment (<= to 2.13.0) to a following one you need to configure the `PREUSED_HEDERA_NET`. After that the parameter will last in the configuration unchanged. ### 3.1. PREUSED\_HEDERA\_NET configuration The `PREUSED_HEDERA_NET` parameter is intended to hold the target Hedera network that the system already started to notarize data to. PREUSED\_HEDERA\_NET is the reference to the HEDERA\_NET that was in usa before the upgrade. To let the Multi-environment transition happen in a transparent way the `GUARDIAN_ENV` parameter in the `.env` file has to be configured as empty while the `PREUSED_HEDERA_NET` has to be set with the same value configured in the `HEDERA_NET` parameter in the previous configuration file. `PREUSED_HEDERA_NET` never needs to be changed after the first initialization. On the contrary it will be possible to change `HEDERA_NET` to dials with all the Hedera different networks. * as first Example: in case of the upgrading from a release minor then 2.13.0 to a bigger one and keep using the same HEDERA\_NET="Mainnet"(as example) configure the name the Guardian platform as empty in the `.env` file ```shell GUARDIAN_ENV="" ``` In this case the configuration is stored in the file named: `./configs/.env..guardian.system`, and is already provided in the folder as example, update the variables OPERATOR\_ID and OPERATOR\_KEY. ```plaintext OPERATOR_ID="..." OPERATOR_KEY="..." ``` PREUSED\_HEDERA\_NET is the reference to your previous HEDERA\_NET configuration then you should set its value to match your previous HEDERA\_NET configuration. ```plaintext HEDERA_NET="mainnet" PREUSED_HEDERA_NET="mainnet" ``` because you are keeping on using HEDERA\_NET as it was pointing to the "mainnet" in the previous installation too. * As a second example: to test the new release change the HEDERA\_NET to "testnet". This is the complete configuration: Set the name of the Guardian platform to whatever descripting name in the `.env` file ```shell GUARDIAN_ENV="testupgrading" ``` In this case the configuration is stored in the file named: `./configs/.env.testupgrading.guardian.system` again update the variables OPERATOR\_ID and OPERATOR\_KEY using your testnet account. ```plaintext OPERATOR_ID="..." OPERATOR_KEY="..." ``` set the HEDERA\_NET="testnet" and set the PREUSED\_HEDERA\_NET to refer to the mainnet as you wish that Mainet data remains unchanged. ```plaintext HEDERA_NET="testnet" PREUSED_HEDERA_NET="mainnet" ``` This configuration allows you to leave untouched all the data referring to Mainnet in the Database while testing on Testnet. Refer to Guardian [documentation](https://docs.hedera.com/guardian/guardian/readme/environments/multi-session-consistency-according-to-environment) for more details. {% hint style="info" %} **Note**. You can use the Schema Topic ID (`INITIALIZATION_TOPIC_ID`) already present in the configuration files, or you can specify your own. {% endhint %} {% hint style="info" %} **Note** for any other GUARDIAN\_ENV name of your choice just copy and paste the file `/configs/.env.template.guardian.system` and rename as `/configs/.env..guardian.system` {% endhint %} ### 3.2 Setting up JWT keys in /`.env` file To start of auth-service it is necessary to fill in `JWT_PRIVATE_KEY` and `JWT_PUBLIC_KEY`, which are RSA key pair. You can generate it in any convenient way, for example, using this service .

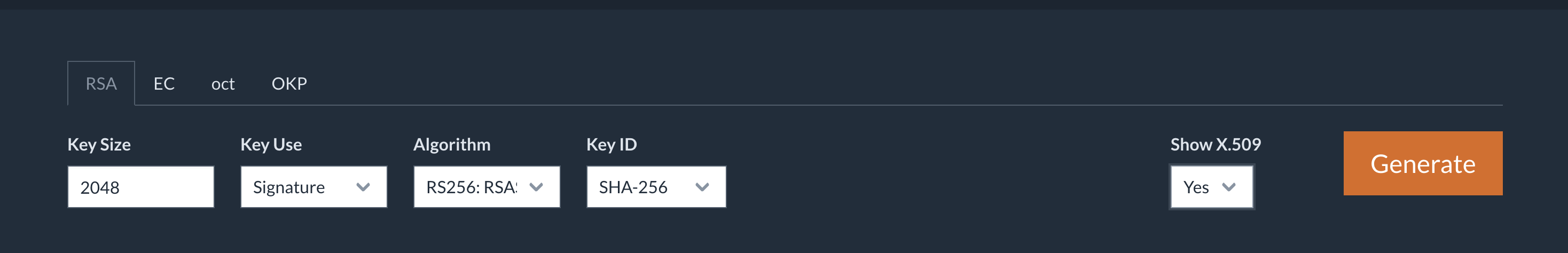

{% hint style="info" %} Note: **Please make sure you copy and paste complete keys starting from "-----BEGIN-----" to "-----END-----".** {% endhint %} To start all services, you need to create a 2048-bit RSA key pair for each service. You can generate a key pair in any convenient way—for example, using the online tool at with the following settings:\ \- key size: 2048\ \- key use: signature\ \- algorithm: RS256: RSA\ \- key ID: sha256\ \- show: yes
For each service, you must add its secret key \`SERVICE\_JWT\_SECRET\_KEY\` and a list of all public keys from every service:\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_WORKER\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_TOPIC\_LISTENER\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_QUEUE\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_POLICY\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_NOTIFICATION\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_LOGGER\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_GUARDIAN\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_AUTH\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_API\_GATEWAY\_SERVICE\`\ \- \`SERVICE\_JWT\_PUBLIC\_KEY\_AI\_SERVICE\` **Note:** Alternatively, you can create a single key pair and, instead of adding the public keys for each individual service, you can add \`SERVICE\_JWT\_SECRET\_KEY\_ALL\` and \`SERVICE\_JWT\_PUBLIC\_KEY\_ALL\` to use the same keys for all services. However, it is recommended to generate a separate key pair for each service.

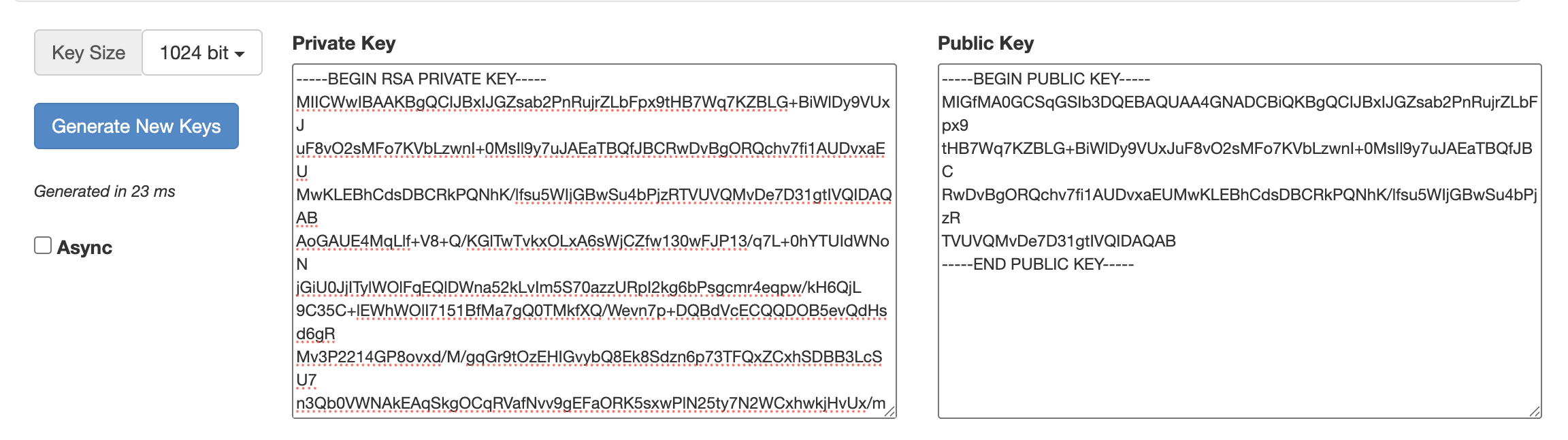

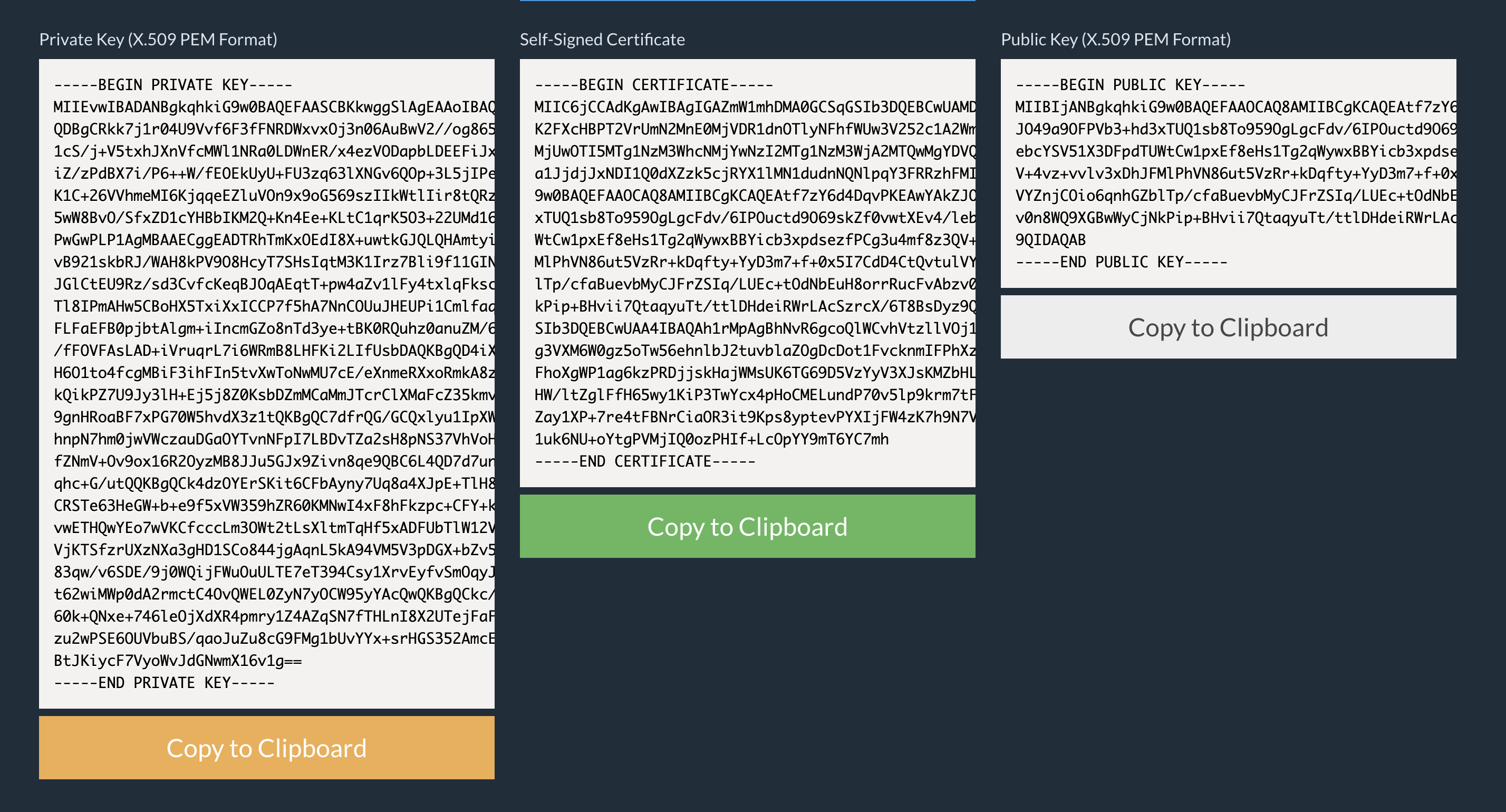

{% hint style="warning" %} **Note**: It is important to add these keys to the env files, because without them the services will return errors, and communication with a service that does not sign messages for the message queue will not be supported. {% endhint %} {% hint style="info" %} Note: Please use the appropriate Private Key and Public Key as shown in the above image. {% endhint %} ## 4. Setup IPFS Now, we have four options to setup IPFS node : 1. Local node 2. IPFS Web3Storage node. 3. IPFS Filebase Bucket. 4. Custom IPFS ### 4.1 Setting up IPFS Local node: * 4.1.1 We need to install and configure any IPFS node. [example](https://github.com/yeasy/docker-ipfs) * 4.1.2 For setup IPFS local node you need to set variables in the same file `./configs/.env.develop.guardian.system` ``` IPFS_NODE_ADDRESS="..." # Default IPFS_NODE_ADDRESS="http://ipfs-node:5001" IPFS_PUBLIC_GATEWAY='...' # Default IPFS_PUBLIC_GATEWAY='http://ipfs-node:8080/ipfs/${cid}' IPFS_PROVIDER="local" ``` {% hint style="info" %} Note: 1. Default IPFS\_NODE\_ADDRESS="" 2. Default IPFS\_PUBLIC\_GATEWAY="[http://ipfs-node:8080/ipfs/${cid}](http://ipfs-node:8080/ipfs/$%7Bcid%7D%22)" {% endhint %} ### 4.2 Setting up IPFS Web3Storage node: For setup IPFS web3storage node you need to set variables in file `./configs/.env..guardian.system`: ``` IPFS_PROVIDER="web3storage" ``` To configure access to the [w3up](https://github.com/web3-storage/w3up) IPFS upload API from web3.storage for your Guardian instance you need to set correct values to the following variables in the `./configs/.env..guardian.system` file. ``` IPFS_STORAGE_KEY="..." IPFS_STORAGE_PROOF="..." ``` To know complete process of How to setup IPFS Storage variables, please check [How to generate Web3.Storage API values](https://guardian.hedera.com/guardian/readme/getting-started/how-to-generate-web3.storage-api-key) ### 4.3 Setting up IPFS Filebase Bucket: To configure the Filebase IPFS provider, set the following variables in the file `./configs/.env..guardian.system`**:** ``` IPFS_STORAGE_API_KEY="Generated Firebase Bucket Token" IPFS_PROVIDER="filebase" ``` Create a new "bucket" on Filebase since we utilize the **IPFS Pinning Service API Endpoint** service. The **token** generated for a bucket corresponds to the **IPFS\_STORAGE\_API\_KEY** environment variable within the guardian's configuration. For detailed setup instructions, refer to the official . ### **4.4 Implement and test a custom IPFS provider:** We provide a flexible workflow for integrating additional IPFS providers: * Configure your environment variables under "configs/". * In the "worker-service" directory, execute `yarn test:ipfs` to: * Build the project within the directory. * Run tests to verify the validity of your configuration without needing to build the entire Guardian system. * To add a new provider, extend the "IpfsProvider" enum in the "ipfs-client" with your provider's enum value and implement your logic following the given examples. Consider the following recommendations: * Design your logic based on interfaces for greater simplicity and maintainability ***(This requires more work in v2.20.x)***. * Ensure that a custom validator for your new client is present in the "worker-service". * Test iteratively by running `yarn test:ipfs` in the "worker-service" directory until your client is fully functional with your desired configuration. This streamlined process allows any product team to swiftly integrate new IPFS clients into the Guardian system, significantly reducing development time ## 5. Setting up Chat GPT API KEY to enable AI Search and Guided Search: For setting up AI and Guided Search, we need to set OPENAI\_API\_KEY variable in `./configs/.env*` files. ``` OPENAI_API_KEY="..." ``` ## 6. Build and launch with Docker. Make sure you use Docker Compose V2 (comes with Docker Desktop > 3.6.0) as at . Please note that this build is meant to be used in production and will not contain any debug information. From the project's root folder: ``` docker-compose up -d --build ``` {% hint style="info" %} **Note:** About docker-compose: from the end of June 2023 Compose V1 won’t be supported anymore and will be removed from all Docker Desktop versions. Make sure you use Docker Compose V2 (comes with Docker Desktop > 3.6.0) as at {% endhint %} ## 7. Browse the local browser Browse to and complete the setup. To get more info, please check: [Launching Guardian](https://guardian.hedera.com/guardian/readme/getting-started/installation/launching-guardian) ## 8. Increase security For increased security remove credentials from `.env` file and enable network access On first state the credentials from `.env` file are copied into the secure storage as configured (e.g. Vault). After that Guardian does not use any credentials stored in the .env file, thus they should be removed for security reasons. ### Process on How to Configure SSL Encryption: 1. Install utility 2. Navigate to `certs` folder and execute ``` mkcert -install mkcert -cert-file server-cert.pem -key-file server-key.pem localhost ::1 mkcert -client -cert-file client-cert.pem -key-file client-key.pem localhost ::1 email@localhost ``` 3. Edit `configs/nats.conf` and uncomment the `tls` section 4. Set `TLS_NATS` variable to `true` (edited) ### Demo Video [Youtube](https://www.youtube.com/watch?v=3fXm7wAERPM\&list=PLnld0e1pwLhqdR0F9dusqILDww6uZywwR\&index=1) ### Troubleshoot #### To delete all the Docker Containers ``` docker builder prune --all ``` #### To run by cleaning Docker Cache ``` docker-compose build --no-cache ``` In the subsection you’ll find the following examples: * [Steps on how to deploy Guardian using a default Environment](https://guardian.hedera.com/guardian/readme/getting-started/installation/building-from-source-and-run-using-docker/deploying-guardian-using-default-environment) * [Steps on how to deploy Guardian using a default Environment ( Develop )](https://guardian.hedera.com/guardian/readme/getting-started/installation/building-from-source-and-run-using-docker/deploying-guardian-using-a-specific-environment-develop) * [Steps on how to deploy Guardian using a default Environment ( QA )](https://guardian.hedera.com/guardian/readme/getting-started/installation/building-from-source-and-run-using-docker/deploying-guardian-using-a-specific-environment-qa)
