Demo using UI

1. Import-Time Configuration

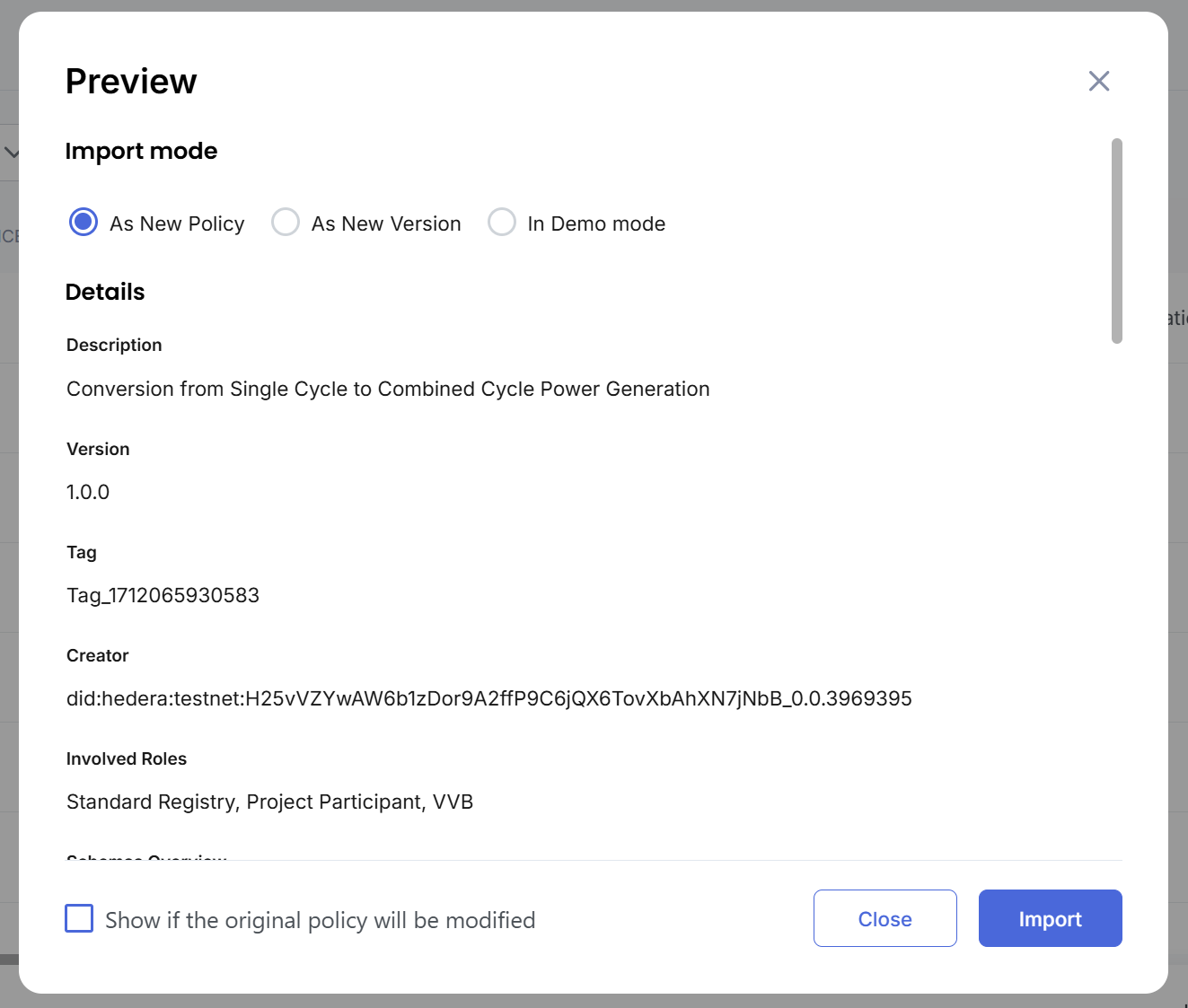

When importing a policy (via file or message), users can enable tamper-resistance by selecting a dedicated “Track policy changes” checkbox during the import process.

Once enabled:

• The system captures and stores the original state of the policy

• All future modifications can be compared against this original baseline

If the checkbox is not selected, the policy will behave as a standard imported policy with no tamper-tracking enabled.

2. Data Model Enhancements

When tamper-resistance is enabled, the following additional fields are stored in the database to preserve the original policy state:

• originalChanged – Indicates whether the policy has diverged from its original state

• originalHash – Cryptographic hash of the original policy

• originalZipId – Reference to the stored original policy file

• originalMessageId – Reference to the original message (for message-based imports)

File-Based Import Behavior

• The original policy file is securely stored in the database

• A unique file ID is assigned and linked to the policy

• This file acts as the immutable baseline for all future comparisons

3. UI Enhancements

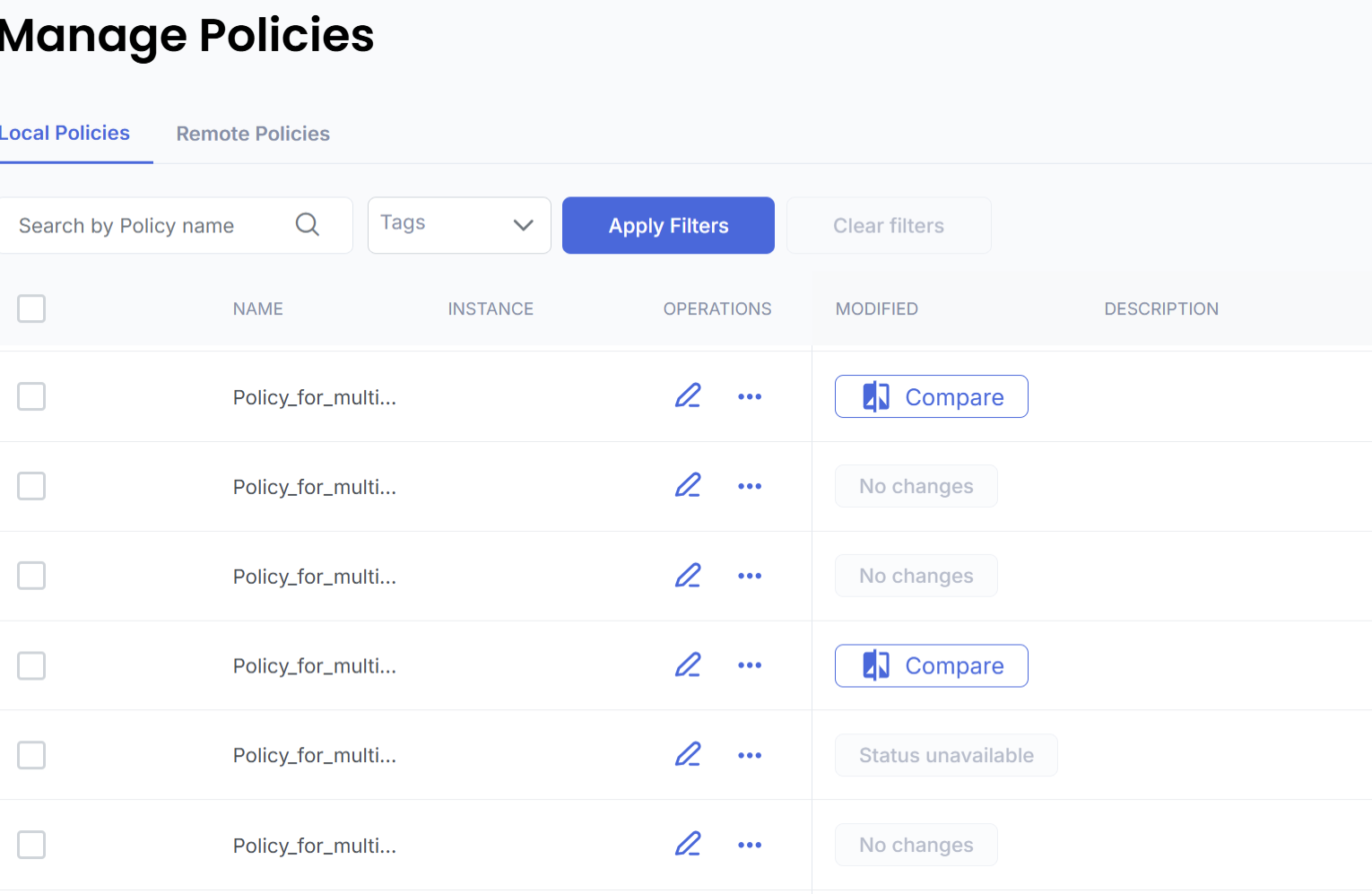

3.1 Policies Grid – Modified Column

A new “Modified” column is added to the Policies grid to surface tamper status at a glance.

Possible States

• Compare – The policy has been modified and can be compared with the original version

• No Changes – The policy matches its original imported state

• Status Unavailable – Original state is not available (e.g., tracking was not enabled)

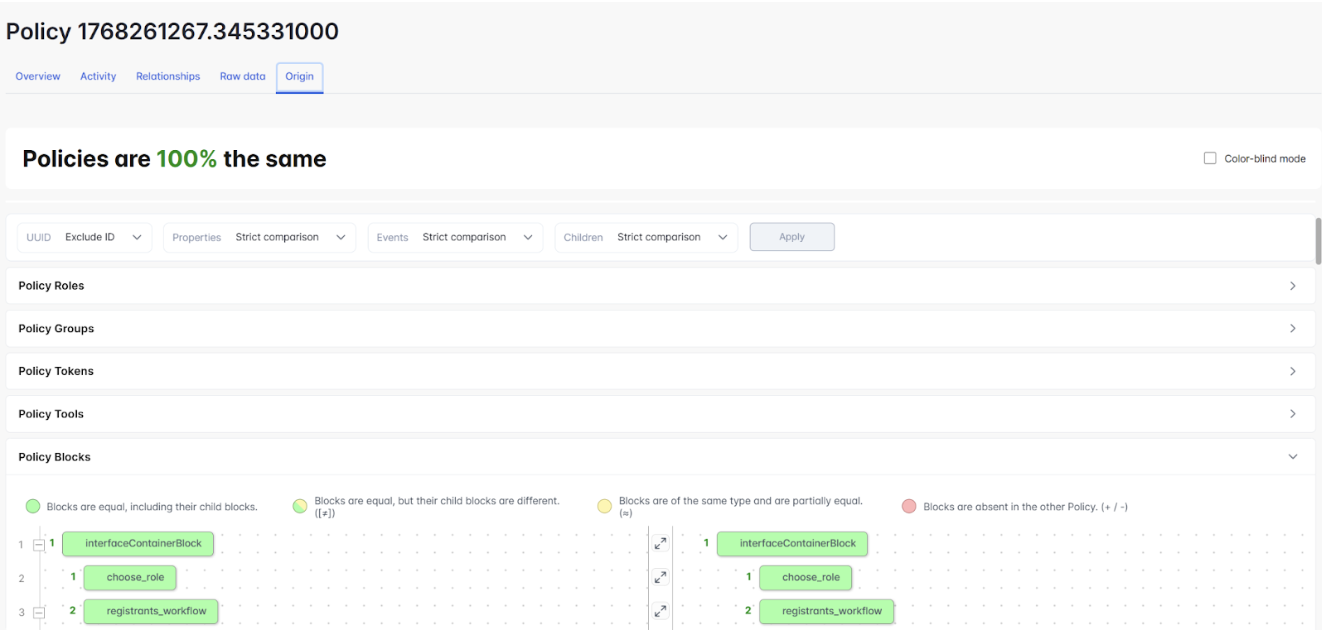

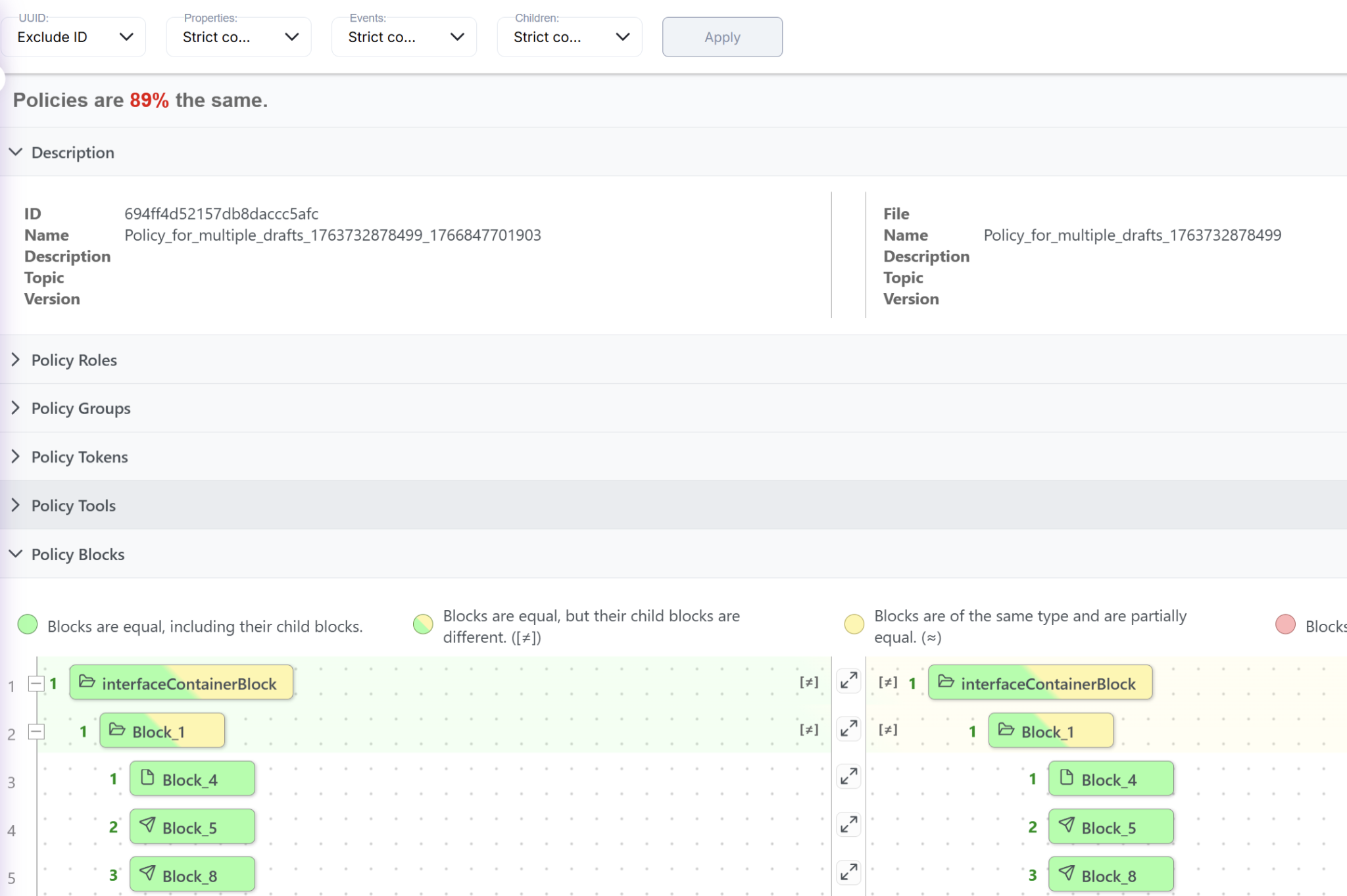

3.2 Compare Action

• Clicking Compare opens a detailed diff view

• Users can visually inspect differences between:

  • Original imported policy

  • Current policy state

This helps users quickly understand what changed and where.
